Mean Well Power Adaptor GE12

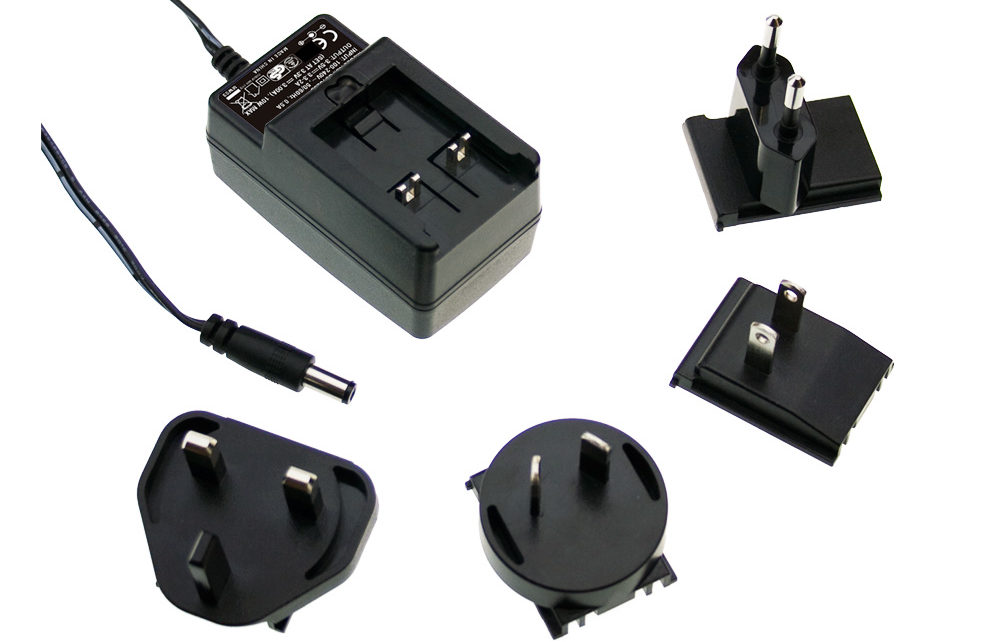

| Interchangeable AC plugs (plug kit sold seperately) |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| ErP step 2 compliant (Level V) |
| Meet EISA 2007 (Energy Independence and Security Act) |
| Class II power (without earth pin) |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE |
| 2 years warranty |
| Output | |
|---|---|
| DC Voltage | 12V / 24V |
| Rated Current | 1.0A/0.5A |
| Current Range | 0~1.0A |
| Rated Power | 12W |
| Ripple & Noise | 120mVp-p |
| Voltage Tolerance | ±3.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±3.0% |
| Setup, Rise Time | 4000ms,100ms,30ms/230VAC 4000ms,100ms,10ms/115VAC(Full Load) |
| Input | |
| Voltage Range | 90~264VAC or 135~370VDC |
| Frequency Range | 47~63Hz |
| Efficiency | 81% |
| AC Current (Typ.) | 0.4A/100VAC 0.25A/230VAC |
| Inrush Current (Typ.) | Cold start:40A/100VAC 80A/230VAC |
| Leakage Current (Typ.) | 0.25mA/240VAC |
| Protection | |
| Over Load | 110%~200%; Protection mode: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 115%~135%; Protection mode: clamping by zener diode |
| Environment | |
| Working Temperature | -10~+50°C(Please refer to Load Derating Curve) |
| Working Humidity | 20~90% RH,non-condensing |
| Storage Temp., Humidity | -20~+85°C, 10-95% RH |
| Temp. Coefficient | ±0.03%/°C(0~40°C) |
| Vibration | 10~500Hz, 2G 10min/60min. each along X, Y, Z axes |
| Certificates | |
| Safety Standards | UL60950-1,CSA C22.2,TUV EN60950-1,CCC GB4943 Certified |
| Withstand Voltage | I/P-O/P:4242VDC |
| Isolation Resistance | I/P-0/P:100M Ohms/500VDC/25°C/70%RH |
| EMC Emission | Compliance to EN55022,EN61000-3-2,3,FCC part15,GB9254 class B |
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, light industry level |
| Physical Properties | |
| Dimensions (LxWxH) | 70.7x40x38.8mm |
| Weight | 115g |
| Other | |
| MTBF | ≥100K hrs MIL-HDBK-217F (25°C) |
| Packing | 97g, Carton size 60unit/6.88kg/Carton |
| Lifetime | 2 year:100%Load ,30°C,8 Hours/ Day |
| Connector | |
| Plug | Standard:P1J:2.1φ*5.5φ*11mm, Centre Positive; Other type can be customized by request |
