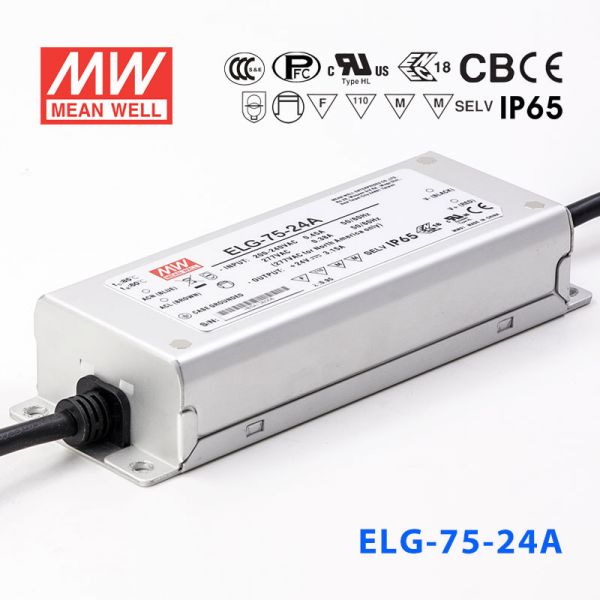

Mean Well Power Supply ELG75
Features
| 180~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over current/ Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 90% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
| Output | |
|---|---|
| DC Voltage | 24V |
| Constant Current Region | 12~24V |
| Rated Current | 3.15A |
| Current Range | 75.6W |
| Ripple & Noise | 200mVp-p |
| Voltage Adj. Range | Adjustable for A-Type Only(via built-in potentiometer );21.6~26.4V |
| Voltage Tolerance | ±3.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 500ms,100ms/230VAC |
| Hold-up Time | 10ms/230VAC |
| Current Adj. Range | Adjustable for A-Type Only(via built-in potentiometer );1.57~3.15A |
| Input | |
| Voltage Range | 180~305VAC 254~431VDC(Please refer to “ Static Characteristic”) |
| Frequency Range | 47~63Hz |
| Power Factor | PF≥0.95/230VAC,PF≥0.92/277VACFull Load(Please refer to “Power Factor (PF) Characteristic”) |
| Efficiency | 88% |
| AC Current (Typ.) | 0.38A/277VAC 0.45A/230VAC |
| Inrush Current (Typ.) | Cold start50A(Test under 50% Ipeak twidth=350μs)@230VAC;Per NEMA 410 |
| Leakage Current (Typ.) | <0.75mA/277VAC |
| Max. No. of Units on 16A Circuit Breaker | Under 230VAC,Can apply 5unit(B type circuit breaker)/8unit(C type circuit breaker) |
| Total Harmonic Distortion (THD) | THD<20%@≥50%Load /230VAC or @≥75%Load /277VAC(Please refer to “ THD Characteristic”) |
| No Load Power Consumption | <0.5W |
| Protection | |
| Over Voltage | 28~34V;Shut down o/p voltage, re-power on to recover |
| Over Temperature | Shut down o/p voltage, re-power on to recover |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Current | 95~108%; Constant Current Limiting, recovers automatically after fault condition is removed |
| Environment | |
| Working Temperature | Tcase=-40~+85°C(Please refer to “Derating Curve”) |
| Working Humidity | 20~95% RH,non-condensing |
| Storage Temp., Humidity | -40~+80°C, 10-95% RH |
| Temp. Coefficient | ±0.03%/°C(0~50°C) |
| Vibration | 10~500Hz, 5G 12min/72min. each along X, Y, Z axes |
| Max. Case Temp. | Tcase=+85°C |
| Certificates | |
| Safety Standards | UL8750(type”HL”);CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13 independent,EN62384;IP65 or IP67 Certified |
| Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC |
| Isolation Resistance | I/P-0/P I/P-FG O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMC Emission | Compliance to EN55015,EN61000-3-2 Class C(≥50%Load );EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11;EN61547, light industry level(surge immunity:Line-Earth6KV,Line-Line:4KV) |
| Physical Properties | |
| Dimensions (LxWxH) | 180x63x35.5mm |
| Weight | 762.5g |
| Other | |
| MTBF | ≥331K hrs MIL-HDBK-217F (25°C) |
| Packing | 0.7kg; Carton size 16unit/12.2kg/0.02 CBM |
