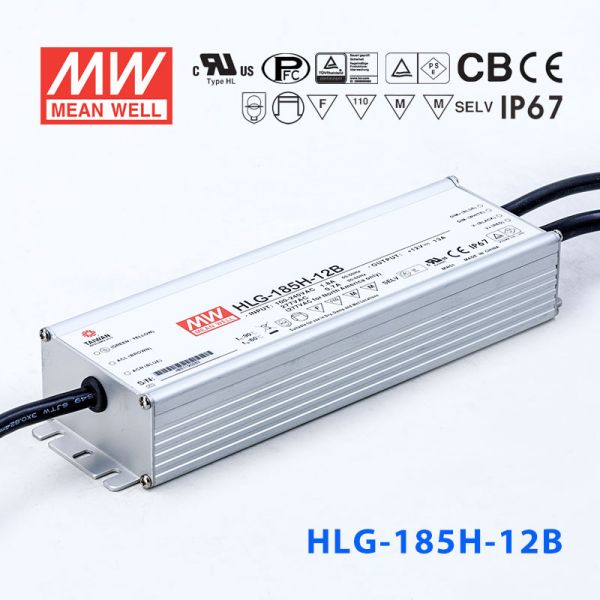

Mean Well Power Supply HLG185
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| Optional CQC models available (A/Blank-Type) |
| 7 years warranty |
| Output | |
|---|---|
| DC Voltage | 12V / 24V |
| Constant Current Region | 6~24V |
| Rated Current | 7.5-13A |
| Rated Power | 156W |
| Ripple & Noise | 150mVp-p |
| Voltage Adj. Range | 10.8~13.5V |
| Voltage Tolerance | ±2.5% |
| Line Regulation | ±0.5% |
| Load Regulation | ±2.0% |
| Setup, Rise Time | 1000ms,50ms/115VAC 500ms,50ms/230VAC(Full Load);B-Type:1000ms,200ms/115VAC 500ms,200ms/230VAC(95%Load ) |
| Hold-up Time | 16ms(Full Load) 230VAC/115VAC |
| Current Adj. Range | 6.5~13A;via built-in potentiometer (A-Type Only) |
