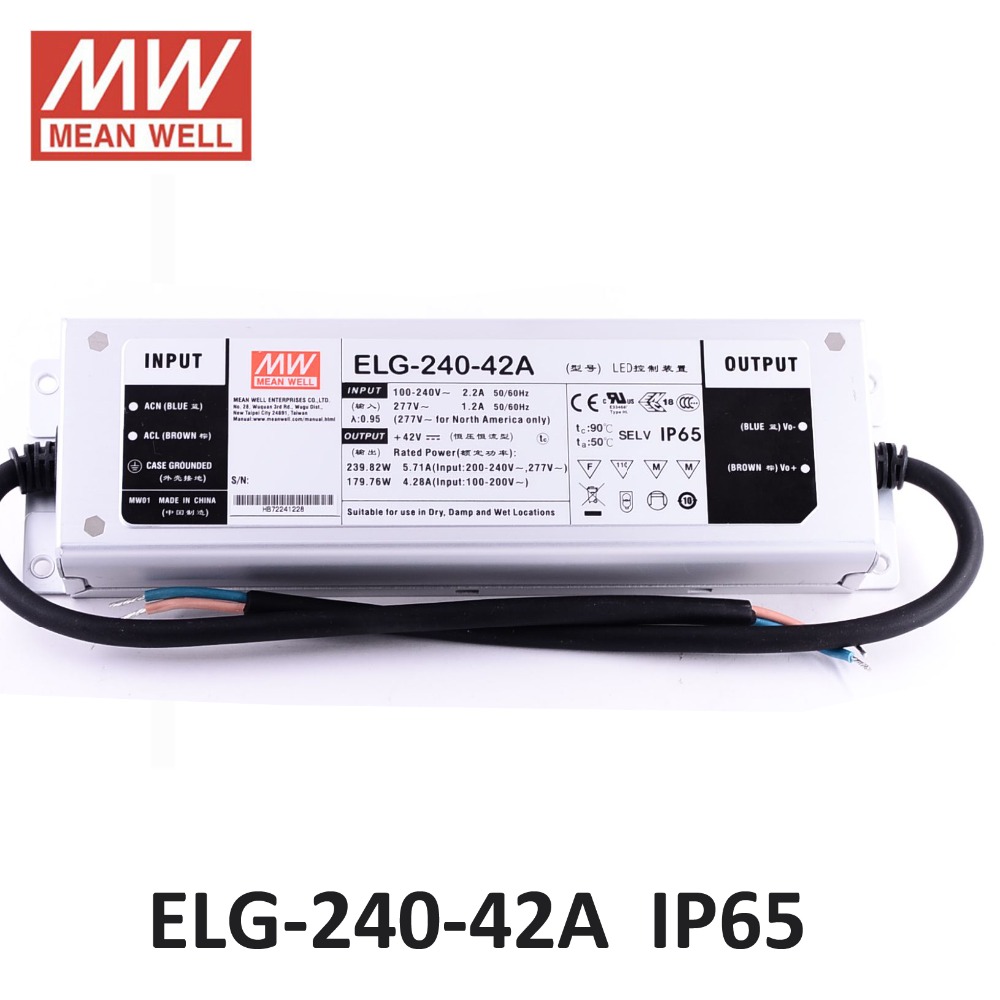

Mean Well Power Supply ELG240
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over current/ Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
| Output | |
|---|---|
| DC Voltage | 24V |
| Constant Current Region | 12~24V |
| Rated Current | 10A |
| Current Range | 240W |
| Ripple & Noise | 200mVp-p |
| Voltage Adj. Range | 22.4~25.6V;Adjustable for A-Type Only(via built-in potentiometer ) |
| Voltage Tolerance | ±2.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Setup, Rise Time | 500ms,100ms/230VAC 1000ms,100ms/115VAC |
| Hold-up Time | 10ms/115VAC,230VAC |
| Current Adj. Range | 5~10A;Adjustable for A-Type Only(via built-in potentiometer ) |
| Input | |
| Voltage Range | 100~305VAC 142~431VDC(Please refer to “ Static Characteristic”) |
| Frequency Range | 47~63Hz |
| Power Factor | PF≥0.97/115VAC,PF≥0.95/230VAC,PF≥0.92/277VACFull Load(Please refer to “Power Factor (PF) Characteristic”) |
| Efficiency | 92% |
| AC Current (Typ.) | 2.2A/115VAC 1.5A/230VAC 1.2A/277VAC |
| Inrush Current (Typ.) | Cold start60A(Test under 50% Ipeak twidth=510μs)@230VAC;Per NEMA 410 |
| Leakage Current (Typ.) | <0.75mA/277VAC |
| Max. No. of Units on 16A Circuit Breaker | Under 230VAC,Can apply 4unit(B type circuit breaker)/6unit(C type circuit breaker) |
| Total Harmonic Distortion (THD) | THD<20%(@≥50%Load /115VAC,230VAC;@Load ≥75%/277VAC)(Please refer to “ THD Characteristic”) |
| No Load Power Consumption | No load power consumption<0.5W(Blank/A/Dx/D-Type); Standby power consumption<0.5W(B/DA-Type) |
| Protection | |
| Over Voltage | 27~34V;Shut down o/p voltage, re-power on to recover |
| Over Temperature | Shut down o/p voltage, re-power on to recover |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Current | 95~108%; Hiccup mode, recovers automatically after fault condition is removed |
| Environment | |
| Working Temperature | Tcase=-40~+90°C(Please refer to “Derating Curve”) |
| Working Humidity | 20~95% RH,non-condensing |
| Storage Temp., Humidity | -40~+90°C, 10-95% RH |
| Temp. Coefficient | ±0.03%/°C(0~50°C) |
| Vibration | 10~500Hz, 5G 12min/72min. each along X, Y, Z axes |
| Max. Case Temp. | Tcase=+90°C |
| Certificates | |
| Safety Standards | UL8750(type”HL”);CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13 independent,EN62384;GB19510.14,GB19510.1;IP65 or IP67 Certified |
| Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC |
| Isolation Resistance | I/P-0/P I/P-FG O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMC Emission | Compliance to EN55015,EN61000-3-2 Class C(@Load ≥50%);EN61000-3-3;GB17625.1,GB17743 |
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11;EN61547, light industry level(surge immunity:Line-Earth6KV,Line-Line:4KV) |
| Physical Properties | |
| Dimensions (LxWxH) | 244x71x37.5mm |
| Weight | 1133g |
| Other | |
| MTBF | ≥200.8K hrs MIL-HDBK-217F (25°C) |
| Packing | 1.05kg; Carton size 12unit/13.6kg |
