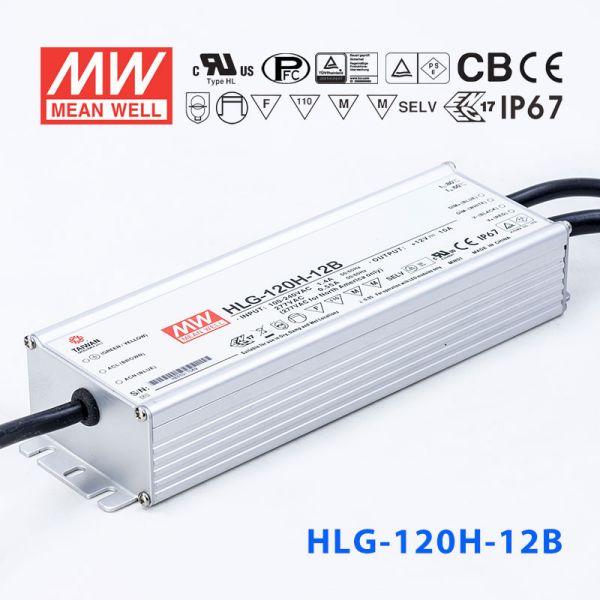

Mean Well Power Supply HLG120

Mean well HLG120

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 93.5%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Class 2 power unit / Pass LPS

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 100W/120W)

Optional CQC models available (A/Blank type)

7 years warranty

Description

Output
DC Voltage	12V
Constant Current Region	6~12V
Rated Current	10A
Rated Power	120W
Ripple & Noise	150mVp-p
Voltage Adj. Range	10.8~13.5V
Voltage Tolerance	±2.5%
Line Regulation	±0.5%
Load Regulation	±2.0%
Setup, Rise Time	1200ms,50ms/115VAC 500ms,50ms/230VAC(Full Load);B-Type:1200ms,200ms/115VAC 500ms,200ms/230VAC(95%Load )
Hold-up Time	12ms(Full Load) 230VAC/115VAC
Current Adj. Range	5~10A;via built-in potentiometer (A-Type Only)
